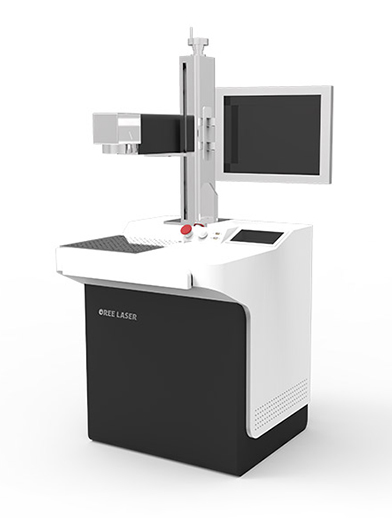

Desk table fiber laser marking machine R-T

HELP YOU ACHIEVE CONSISTENCY

We are Ready to Take you One Step Forward

Oree laser desk table fiber laser marking machine can process most metal and nonmetal materials, metal: stainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate, gold, silver, titanium, ring and other plate products. Nonmetal: painting acrylic, density board, plastic, acrylic acid, rubber, bamboo, marble, painting glass, TPU(Thermoplastic polyurethanes) Desk Table Fiber Marking Machine uses in electronic components, integrated circuits (IC), electrical appliances, mobile communications, hardware, tools, accessories, precision instruments clocks and watches, glasses, jewelry accessories, auto parts, plastic buttons, building materials, PVC pipes and other industries.

Product Description

Model R-T
Working Area 100*100mm / 200*200mm / 300*300mm
Laser Output Power 20w/30w/50w
Marking line speed ≤7000mm/s

See How It Work

Technical Data

Model R-T
Working Area 100*100mm/200*200mm
Laser Power 20w/30w/50w
Marking Line Speed ≤7000mm/s
Minimum Line Width 0.02mm
Minimum Character 0.15mm*0.15mm
Working Voltage 220V/50HZ, 110V/60HZ
Repeatability Accuracy ±0.01mm
Laser Wavelength 1064nm
