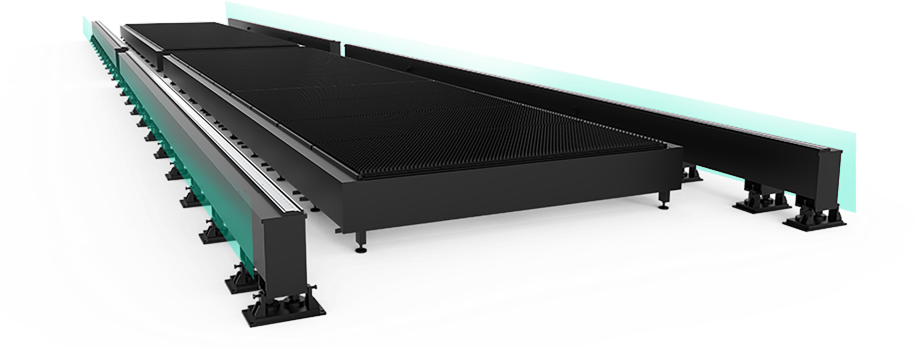

Heavy-duty gantry split plate welding machine bed, tenon and tenon structure, equal-strength welding, stability is improved by more than 65% compared with similar products

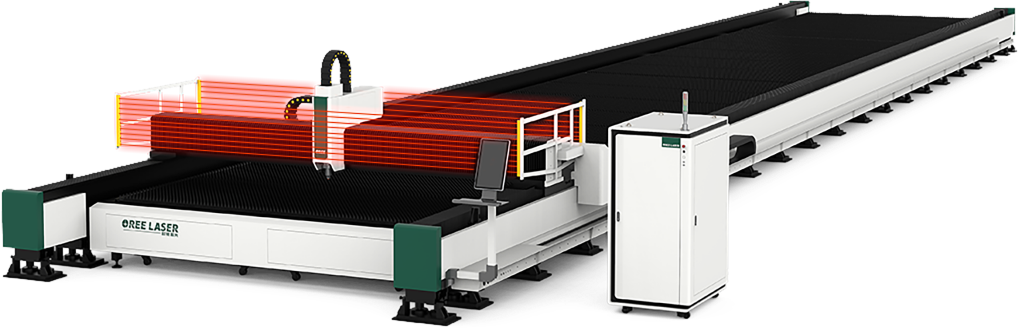

The beam part is equipped with safety gratings to ensure the production safety of employees.

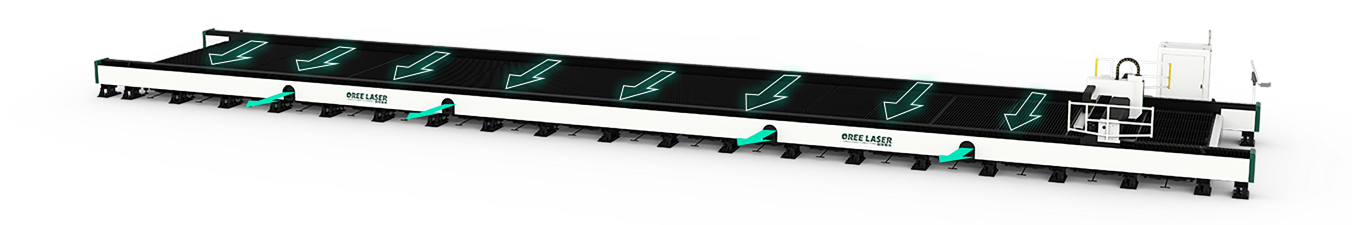

The lower area of the cutting area is equipped with large-caliber partitioned dust removal, with a powerful gathering exhaust system and a follow-up dust removal design, which can remove dust more thoroughly, zero pollution and more environmentally friendly.

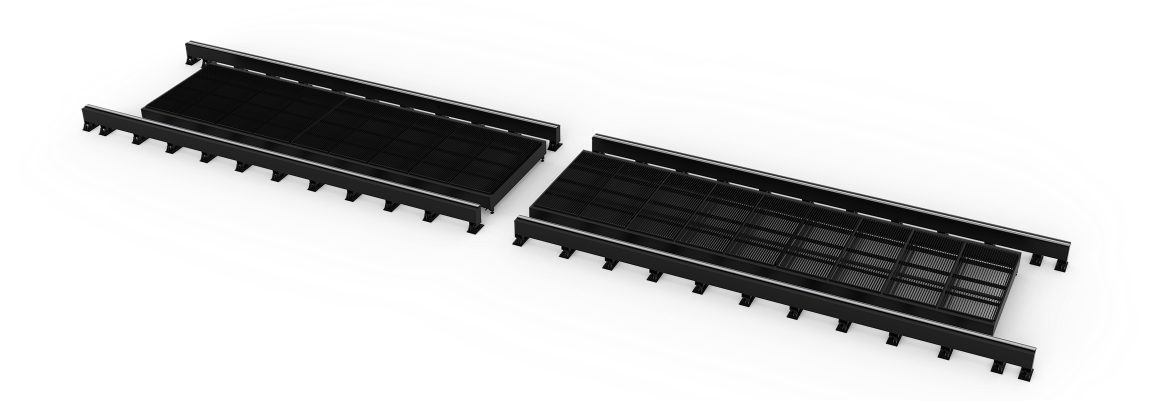

Integrated modular blade type support design, realizing rapid replacement of blades without stopping the machine, easy maintenance, and saving user costs.
Oree's patented foot design adopts line contact mode to ensure the stability of the bed during the cutting process, and it is more convenient to adjust the accuracy of the bed.

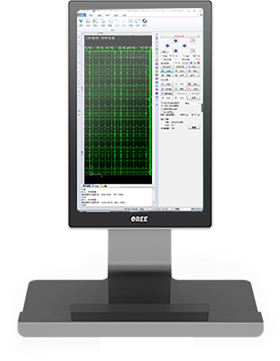

With the visual replenishment function, novice operators can track the metal sheet through the operation interface and replenish the layout to ensure accurate cutting. Maximize the use of surplus plates, and increase the utilization rate of plates to 90%.
Model |
OR-G24023 |
Processing area |
24100*3200mm |
Laser power |
8000-30000w |
Positioning accuracy |
±0.05mm |
Repeated positioning accuracy |
±0.05mm |
Maximum cutting speed |
80m/min |
Maximum acceleration |
2.5G |
